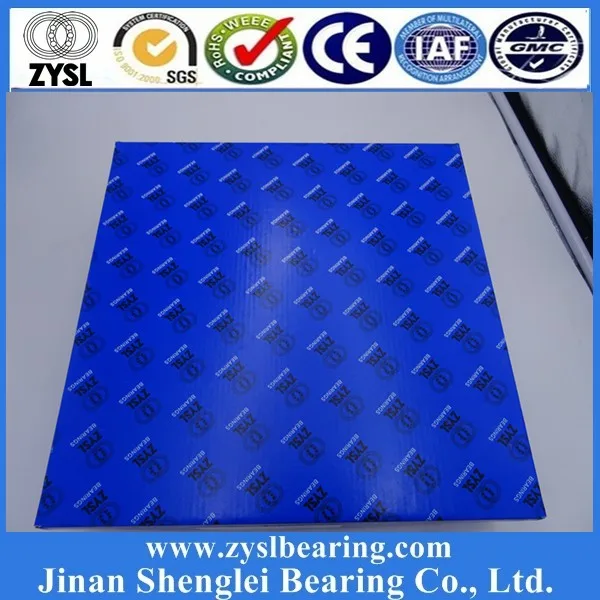

A: tube package + outer carton + pallets

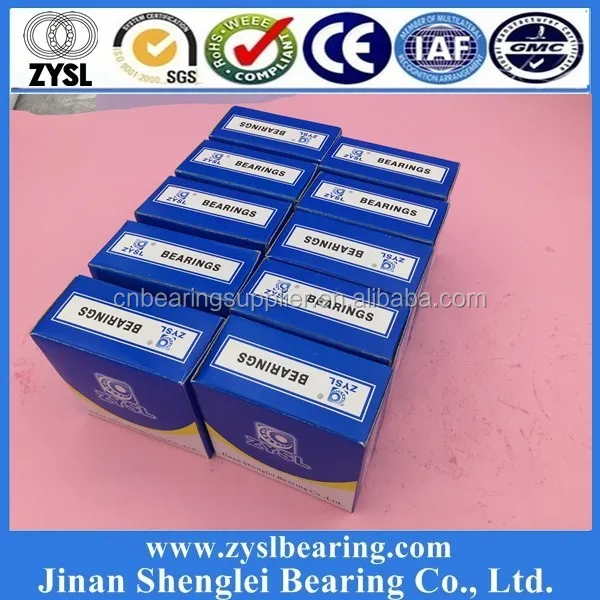

B: single box + outer carton + pallests
C: tube package + middle box + outer carton + pallets
D: According to your request
Shipped in 3 days after payment

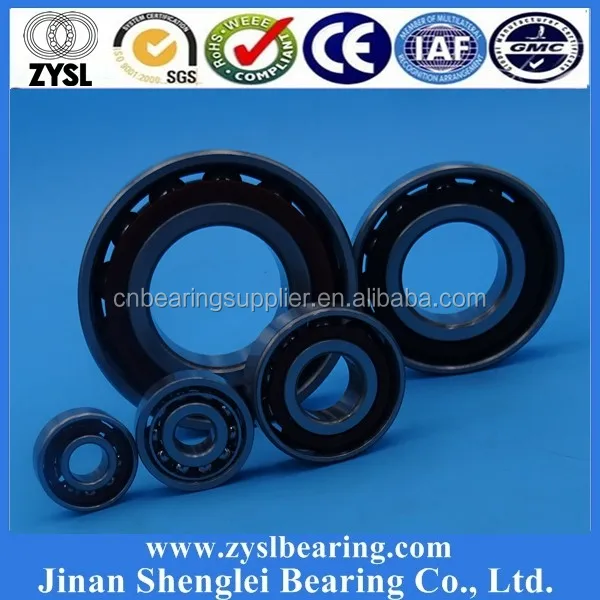

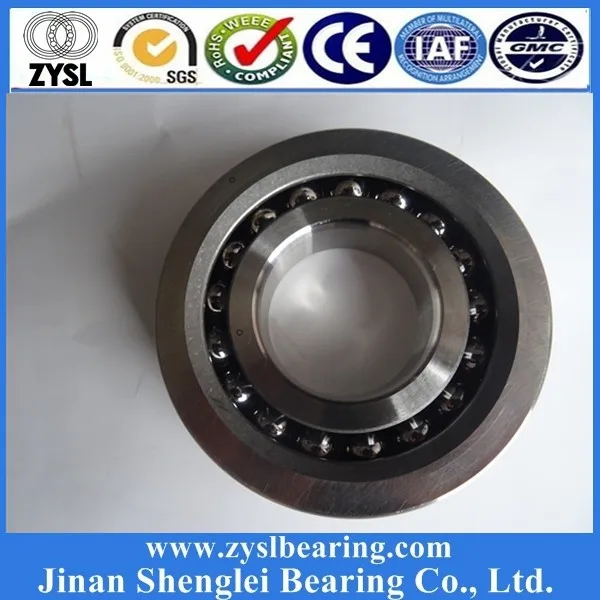

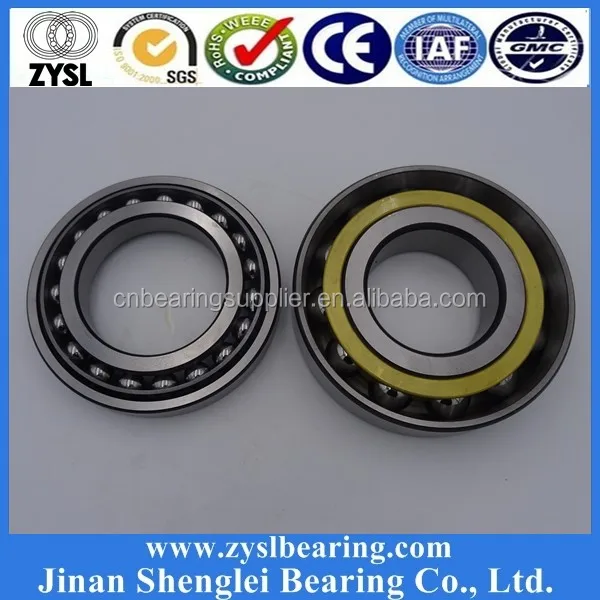

Angular contact ball bearings have raceways in the inner and outer rings that are displaced with respect to each other in the direction of the bearing axis, which means that they are designed to accommodate combined loads, i.e. simultaneously supporting radial and axial loads.The axial load carrying capacity of angular contact ball bearings increases with increasing contact angle. The contact angle α is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane, along which the load is transmitted from one raceway to another, and a line perpendicular to the bearing axis.Retainers are made of brass ,synthetic resin of others subject to individual bearing features and application conditions.
It uses axially asymmetric races. An axial load passes in a straight line through the bearing, whereas a radial load takes an oblique path that tends to want to separate the races axially. So the angle of contact on the inner race is the same as that on the outer race. Angular contact bearings better support "combined loads" (loading in both the radial and axial directions) and the contact angle of the bearing should be matched to the relative proportions of each. The larger the contact angle (typically in the range 10 to 45 degrees), the higher the axial load supported, but the lower the radial load.
Angular contact ball bearings are produced in a wide variety of designs and sizes.Those commonly used and included in this catalogue are:
1.Single-row angular contact ball bearings
Axial load in single direction can be sustained. While supporting pure radial load, the bearings must be installed and used in pairs since the line of action of the rolling element load is not in the same plane as that of the radial one, resulting in inner separate force.
2.Double-row angular contact ball bearings
This is basically a back-to-back mounting of two single-row angular contact ball bearings, but their inner and outer rings are each integrated into one. Axial loads in both directions can be sustained, and the capacity to sustain moments is good. This type is used as fixed-end bearings. Their cages are pressed steel.
3.Four-point angular contact ball bearings
The inner ring is split radially into two pieces. Their design allows one bearing to sustain significant axial loads in either direction. The contact angle is 35°, so the axial load capacity is high. This type is suitable for carrying pure axial loads or combined loads where the axial loads are high. The cages are made of machined brass.
They are mainly used for steel industry,mining&construction,papermaking machinery, wind turbines,semiconductors,machine tools,gearboxes,electric motors,pumps&compressors,injection moldingmachines.
1.Load capacities are higher than deep groove ball bearing of same dimensions.
2.Used for bearing radial-axial combined loads or pure thrust loads.
3.Low operating friction and high limiting speed.
1.Low friction, almost noiseless and high rolling speed
2.Easy to install
3.Simple structure ensures fast equipment
4.Optimised internal design
5.High load ratings
6.Increased limiting speed
7.High strength ball guided brass cage
8.High dimensional and running accuracy
9.Narrow axial clearances or preloads range
10.Universal facing in standard

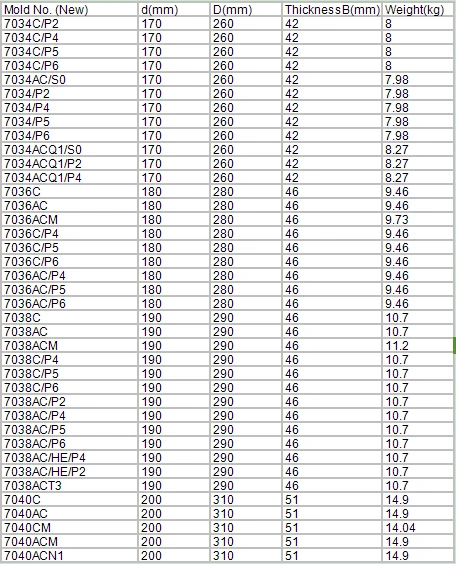

Ps: This is part model number of Angular contact ball bearings we have, if you are fail to find the one you need, please contact us directly.
1.High speed, High Precision, Low Noise, Long Service Life
2.Wide Array of Applications
4.Small order accept
5.Competitive Prices and High Quality
7.Require little maintenance
8. OEM is supported
9. Our company insists on the "quality first, credit first" business ideas and our product specification is well-founded. We have a good reputation in the international market by our perfect service and sufficient supply.
Jinan Shenglei Bearing co.,Ltd is a product and trade integrated company specializing in bearings. We have more than twenty years' experence in technical support and service provided for bearings in industrial field. We have our own factory, which is located in China's bearing production base--Shandong province. Covering more than 3000 square meters, the factory possesses many pieces of advanced manufacturing equipment. We have about 300 staffs, 20 technicians and 20 quality controllers. So one of our biggest advantages compared others is that we can provide the best factory price based on the same good quality.
The company has passed ISO9001 Quality Management System and is managing the production in strict compliance with the international and domestic standards. "ZYSL" is the company's registered trademark. The main products include tapered roller bearings, self-aligning roller bearings, cylindrical roller bearings, deep groove ball bearings, self-aligning ball beairngs, angular contact ball bearings, thrust ball bearings, pillow block bearings, joint bearings, needle bearings, linear bearings, auto bearings,etc. Our bearing are mainly used in industry, machinery, rolling mill, textile, railway, metal lurgy, mining and other major manufacturers and facilitate the dealers in supporting and assistance service at any time. In addition,our technical team has also developed ceramic bearings, plastic bearings and stainless steel bearings etc. Our products are mainly exported to Middle East, Southeast Asia, South America, India, Pakistan, Canada, Singapore, Korea and other countries and areas.
We have been serving every customer by virtue of our superior pre-sale technological support and after-sale tracking service since the company was established. We dedicate to the proposition of “Quality assurance, great variety of goods, favorable price and punctual supply” and comply with the management idea of “Integrity,pragmatic and win-win “so that the most superior service and goods can be provided for our customers. We will also offer customers the most perfect service in terms of the selection of imported bearings, application direction, performance testing, and technology communication to grant every customer faith in all aspects of our products. We are sincerely looking forward to cooperating with more customers as well as friends and pushing forward prosperity of business. Warmly welcome people of vision from all walks of life in bearing industry to visit us for discussion and cooperation.
B.30%T/T in advance,70% aganist copy of B/L(For large order)
Q: Are you trading company or manufacturer ?
A: We are the manufacture of bearings for more than 20 years, "Quality is our culture".
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What causes bearing noise?
A: Bearing noise is a function of both the bearing and the way it is used. Some external factors that affect bearing noise include lubricant type, excessive bearing load, and improper installation. Once the abnormal noise occurred, you can contact our engineers, we will help you find the reasons and provide the appropriate solutions.
Q: What is your terms of payment ?
A: A: A.100%T/T
B.30%T/T in advance,70% aganist copy of B/L(For large order) C.Western Union D.Paypal
