High precision deep groove ball bearing 6004 for 24 volt ball bearing dc vibration motor

FOB Reference Price:Get Latest Price
US $33-35 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Structure:
Deep Groove
Type:
Ball
Brand Name:
ZYSL
Bore Size:
2 - 680 mm
Outside Diameter:
3 - 880 mm
Model Number:
6004
Precision Rating:
P0 P6 P5 P4 P2
Seals Type:
Open
Number of Row:
Single Row
Place of Origin:
Shandong, China (Mainland)
Material:
Electrically Insulated Material, Ceramic
Service:
OEM Customized Services
Certificate:
ISO9001:2008
Application:
high power motor, railway locomotive traction motor, generator, etc
Vibration:
Z1V1 Z2V2 Z3V3 Z4V4
Feature:
Electrically Insulated
Lubrication:
Oil-free Self-lubricated
Package:
Original Package
Sample:
Avaible
Stock:
Rich
SupplyAbility
SupplyAbility:
1000000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
A: tube package + outer carton + pallets
B: single box + outer carton + pallests
C: tube package + middle box + outer carton + pallets
D: According to your request
Port
Guangzhou or as your requirement
Lead Time :
Shipped in 3 days after payment
Product Description

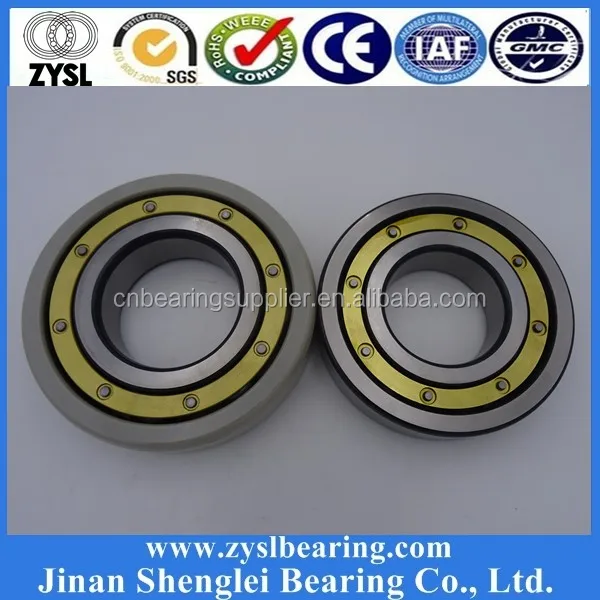

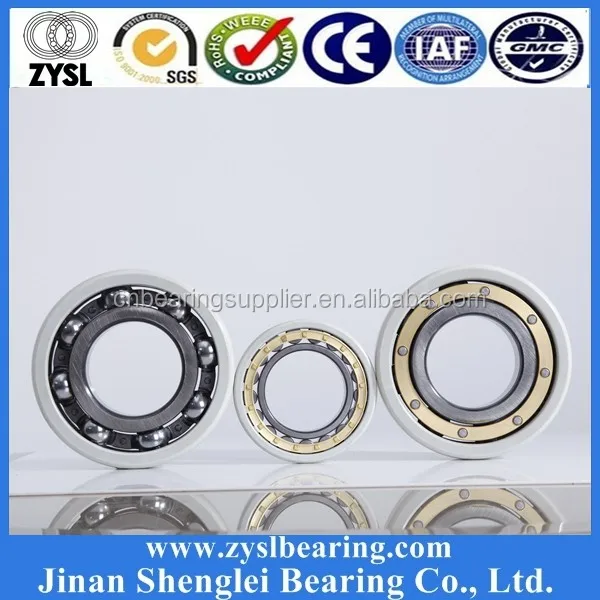

Electrically Insulated Bearings Profile:


A: What is Electrically Insulated Bearing?

Electrically Insulated Bearing is a general term for the bearings which can stop the electric current through, bearings have the Insulation properties itselves. Its Insulation properties are usually using a special process in the bearing outer or inner ring coated with a layer of insulating material, or the rolling elements made by ceramic materials to guarantee the insulation properties. Electrically Insulated Bearings name and code using the international bearing code. Outer insulation plus VL0241 after bearing type, inner ring insulation bearing type code is VL2071.

B: Using electrically insulated bearings under what circumstances?


Because of the motor in the process of manufacturing even very strictly control the production is difficult to completely avoid the armature and rotor magnetic asymmetry, this asymmetry can produce between the stator voltage, it will produce after bearing current, especially more serious in ac motor, the current in the bearing raceway and rolling body surface corrosion pits, weld mark, electric erosion cut, color, wear and damage. Using the inverter and the technology of frequency conversion motor, of course, also can produce this kind of phenomenon. In order to block this current flows through the bearing, you need to cut off the circuit, so that the insulation bearing and insulation bearing chamber was born.


C: Electric insulation bearing classification.

Now on the market sales of insulation bearing generally there are three: Surface coated ceramic, surface coating resin, using ceramic roller. Surface coated ceramic this amount is the largest.

D: Electric insulation bearing technology parameters

Its size is the same as conventional bearing, assembled interchangeable. Insulation resistance to the measured value is greater than at least 1000Ω when 500 VDC.

E: Electrically insulated bearing applications

Mainly used in high power motor, railway locomotive traction motor, frequency conversion motor, generator, etc

F: Cage of Electrically insulated bearing

According to the different bearing series and size, electrically insulated bearing bracket will be equipped with the following: reinforced nylon 66 cage, stamping steel cage, solid brass cage car system.

G: Advantage of electrically insulated bearing

Electrically insulated bearing can avoid electric corrosion caused by the damage, so compared with the ordinary bearing used in motor can ensure more reliable operation.Compared with other methods of insulation, such as shaft and the shell insulation and so on, more cost-effective and reliable.Insulation bearing dimension and the basic technical characteristics and the insulation bearing the same, so you can absolutely swaps.

PS: This is only a small part of our Electrically Insulated Bearings, if you fail to find the one you need, please contact us directly. Thanks in advance.
Products Show
Our Service

1.High speed, High Precision, Low Noise, Long Service Life

2.Wide Array of Applications

3.Large Inventories

4.Small order accept

5.Competitive Prices and High Quality

6.Various Brands

7.Require little maintenance

8. OEM is supported

9. Our company insists on the "quality first, credit first" business ideas and our product specification is well-founded. We have a good reputation in the international market by our perfect service and sufficient supply.

Our Company

Jinan Shenglei Bearing co.,Ltd is a product and trade integrated company specializing in bearings. We have more than twenty years' experence in technical support and service provided for bearings in industrial field. We have our own factory, which is located in China's bearing production base--Shandong province. Covering more than 3000 square meters, the factory possesses many pieces of advanced manufacturing equipment. We have about 300 staffs, 20 technicians and 20 quality controllers. So one of our biggest advantages compared others is that we can provide the best factory price based on the same good quality.


The company has passed ISO9001 Quality Management System and is managing the production in strict compliance with the international and domestic standards. "ZYSL" is the company's registered trademark. The main products include tapered roller bearings, self-aligning roller bearings, cylindrical roller bearings, deep groove ball bearings, self-aligning ball beairngs, angular contact ball bearings, thrust ball bearings, pillow block bearings, joint bearings, needle bearings, linear bearings, auto bearings,etc. Our bearing are mainly used in industry, machinery, rolling mill, textile, railway, metal lurgy, mining and other major manufacturers and facilitate the dealers in supporting and assistance service at any time. In addition,our technical team has also developed ceramic bearings, plastic bearings and stainless steel bearings etc. Our products are mainly exported to Middle East, Southeast Asia, South America, India, Pakistan, Canada, Singapore, Korea and other countries and areas.

We have been serving every customer by virtue of our superior pre-sale technological support and after-sale tracking service since the company was established. We dedicate to the proposition of “Quality assurance, great variety of goods, favorable price and punctual supply” and comply with the management idea of “Integrity,pragmatic and win-win “so that the most superior service and goods can be provided for our customers. We will also offer customers the most perfect service in terms of the selection of imported bearings, application direction, performance testing, and technology communication to grant every customer faith in all aspects of our products. We are sincerely looking forward to cooperating with more customers as well as friends and pushing forward prosperity of business. Warmly welcome people of vision from all walks of life in bearing industry to visit us for discussion and cooperation.

Packing & Delivery

Package:

A.tube package + outer carton + pallets

B.single box + outer carton + pallets

C.tube package + middle box + outer carton + pallets

D.According to your request.

Payment Terms:

A.100%T/T

B.30%T/T in advance,70% aganist copy of B/L(For large order)

C.Western Union

Our Certifications
Customer Photo
FAQ

Q: Are you trading company or manufacturer ?

A: We are the manufacture of bearings for more than 20 years, "Quality is our culture".

Q: How long is your delivery time?

A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: What causes bearing noise?

A: Bearing noise is a function of both the bearing and the way it is used. Some external factors that affect bearing noise include lubricant type, excessive bearing load, and improper installation. Once the abnormal noise occurred, you can contact our engineers, we will help you find the reasons and provide the appropriate solutions.

Q: What is your terms of payment ?

A: A.100%T/T

B.30%T/T in advance,70% aganist copy of B/L(For large order)
C.Western Union
D.Paypal
