supply slewing bearing excavator bearings 7306c

FOB Reference Price:Get Latest Price
US $2.4-3.6 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Structure:
Angular Contact
Type:
Ball
Brand Name:
ZYSL
Bore Size:
30 mm
Outside Diameter:
72 mm
Model Number:
7306c
Precision Rating:
P0 P6 P5 P4 P2
Seals Type:
Open
Number of Row:
Single Row
Place of Origin:
Shandong, China (Mainland)
thickness:
19mm
Material:
Ceramic
Cage:
Nylon
Service:
OEM Customized Services
Certification:
ISO9001:2008
Vibration:
Z1V1 Z2V2 Z3V3 Z4V4
Application:
Fuel Injection Pump
Tolerance:
ABEC1 ABEC3 ABEC5 ABEC7
Sample:
Avialable
Feature:
Stable Performance:low Voice
Supply Ability
Supply Ability:
100000 Set/Sets per Month
Packaging & Delivery
Packaging Details
A: barreled package+outer carton+pallets
B: single box+outer carton+pallets
C: tube package+middle
Port
Shanghai,Guangzhou,Shenzhen,Hongkong,Tianjin
Lead Time :
Shipped in 2 days after payment
Product Description

 A part of our products:

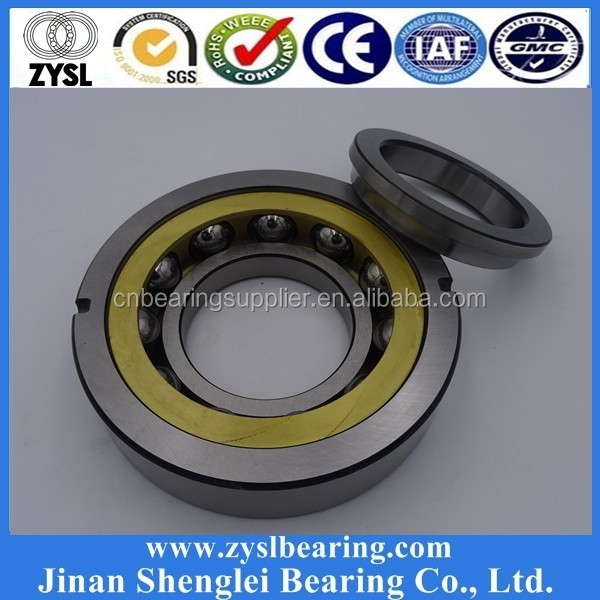

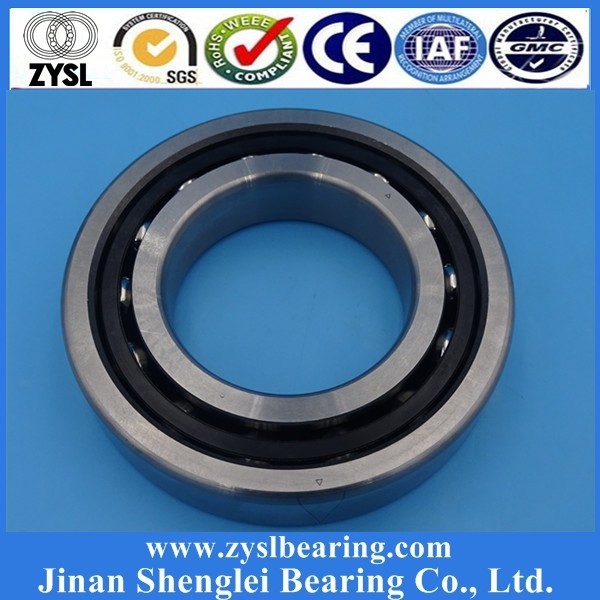

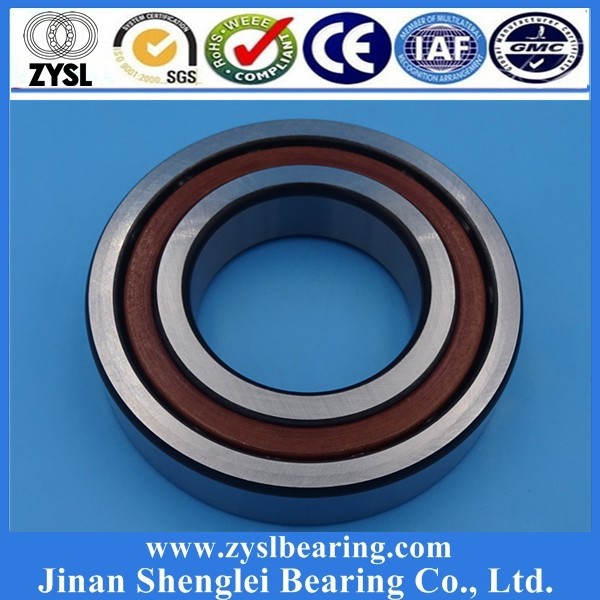

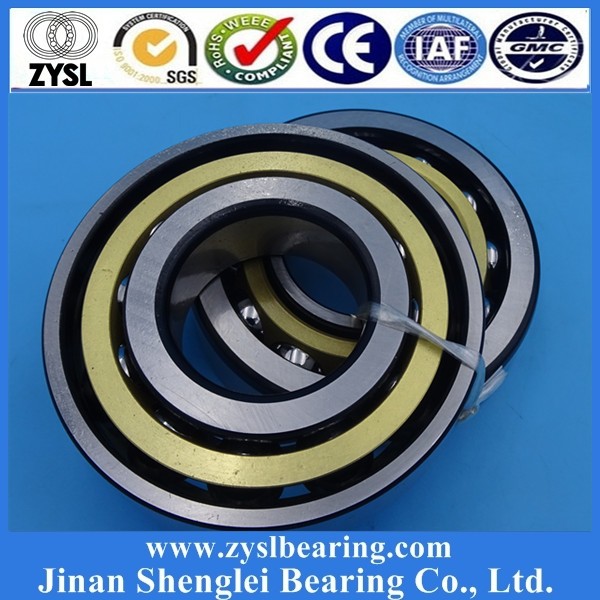

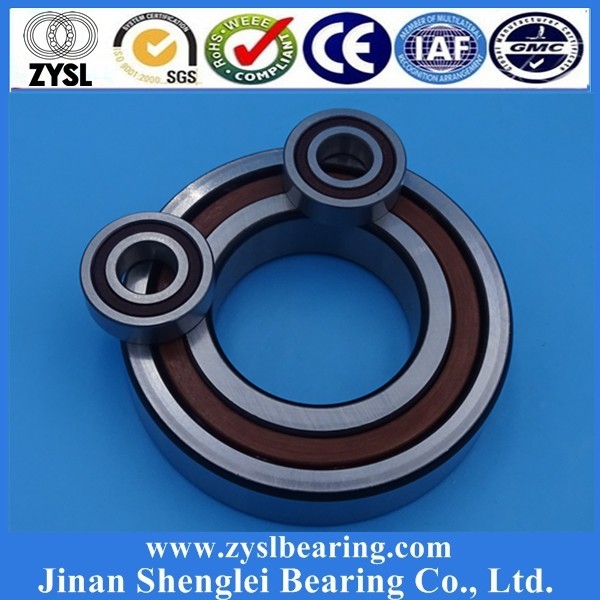

supply slewing bearing excavator bearings 7306c pictures

show:

1.61.5DSC01890_1.22

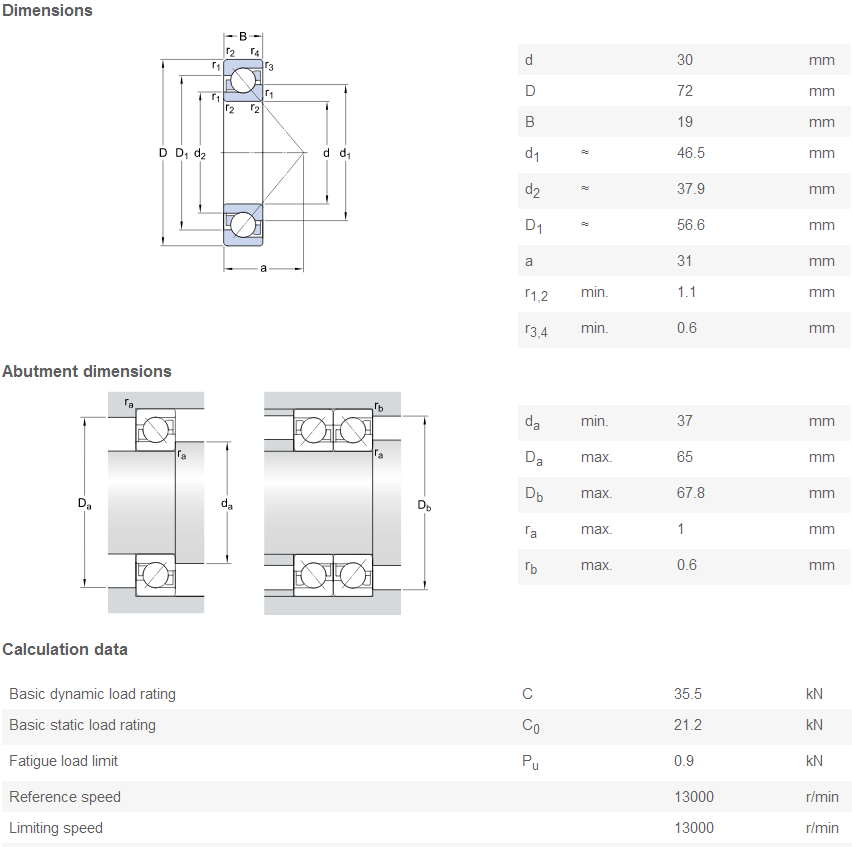

Drawing of supply slewing bearing excavator bearings 7306c

Related model and specifications of supply slewing bearing excavator bearings 7306c

 Item

   Basic Size

(mm)

Weight

   (kg)

Item

      Basic Size

     (mm)

Weight

   (kg)

dDBdDB
7303174715.50.13731260130342
7304205216.5

0.17

73136514036.52.53
7305256218.50.2573147015038.53.09
73063072210.39373157516040.53.54
73073580230.496731680170434.5
7308409025.50.7731785180455.25
73094510027.50,954731890190475.79
73105011029.51.33731995200507.2
731155120321.617320100215528.27

Introduction of angular contact ball bearing:

Angular contact ball bearings have raceways in the inner and outer rings that are displaced

with respect to each other in the direction of the bearing axis. This means that they are

designed to accommodate combined loads, i. E. Simultaneously acting radial and axial loads.

The axial load carrying capacity of angular contact ball bearings increases with increasing

contact angle.

Ceramic ball especially silicon nitride ceramic ball have the following performance as low

density, high strength, low friction coeffecient, electrical and magnetism resistance, wear

resistance, well rigidity, lubrication and maintenance free when working, ceramic angular

contact ball bearing has the characteristics of high temperature resistance, cold resistance,

abrasion resistance, corrosion resistance and insulation, and can be used in extremely bad

environment and special conditions.it's the best choice for rollers and rings for bearing wich

are used in high speed, long accuracy and long life environments. So they are widely used in

aviation, aerospace, marine, petroleum, chemical, automotive, electronics, metallurgy, electric

power, textile, medical equipment and other fields.



Rings:

The inside and outside rings are made by chrome steel (GCr15)/stainless steel/Silicon Nitride

/ZrO2;

Rollers:

The balls are made of silicon nitride ceramic/ZrO2;

Retainers:

The retainers are made by PEEK or PTFE.
