Quick Details

  • Structure: Angular Contact
  • Type: Ball
  • Brand Name: ZYSL
  • Bore Size: 20 mm
  • Outside Diameter: 47 mm
  • Model Number: 3204-2RSTN1
  • Precision Rating: P0 P6 P5 P4 P2
  • Seals Type: Open
  • Number of Row: Single Row
  • Place of Origin: Shandong, China (Mainland)
  • thickness: 20.6mm
  • Material: Ceramic
  • Cage: Nylon
  • Service: OEM Customized Services
  • Certification: ISO9001:2008
  • Vibration: Z1V1 Z2V2 Z3V3 Z4V4
  • Application: Fuel Injection Pump
  • Tolerance: ABEC1 ABEC3 ABEC5 ABEC7
  • Sample: Avialable
  • Feature: Stable Performance:low Voice

Packaging & Delivery

Packaging Details A: barreled package+outer carton+pallets
B: single box+outer carton+pallets
C: tube package+middle
Delivery Time Shipped in 2 days after payment
Product Description

High quality chrome steel 47*20*20.6mm Pump bearing 3204-2RSTN1

 A part of our products:

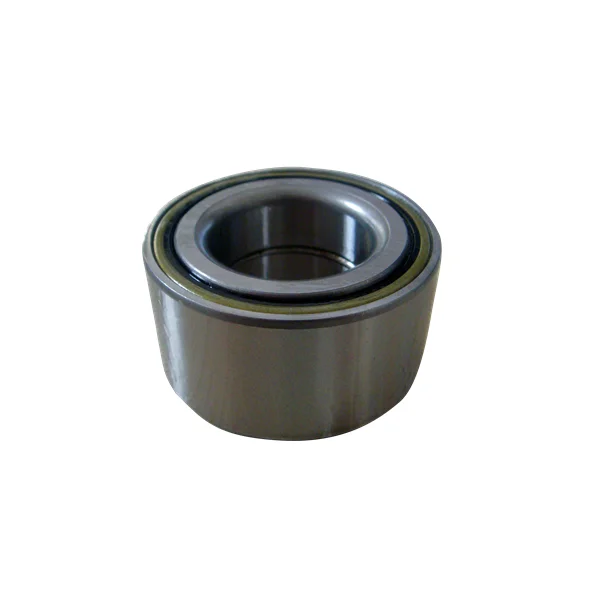

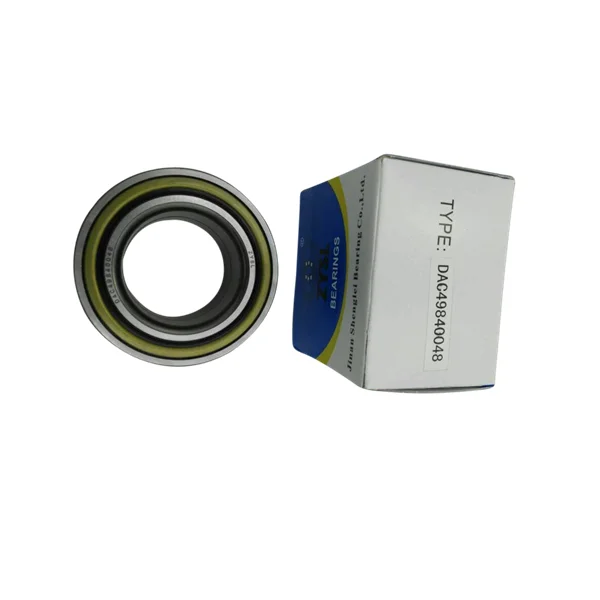

Pictures show:

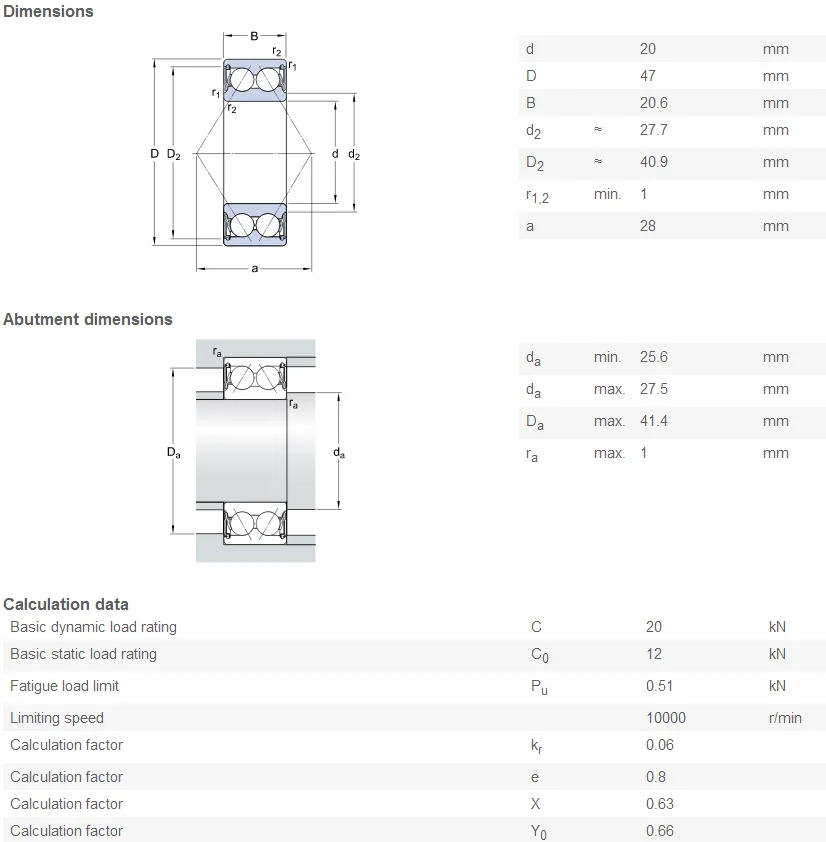

Drawing

Related model and specifications



Bearing NumberdDBrsminWeight(KG)
3200103014.30.60.049
3201123215.90.60.057
3202153515.90.60.064
330215421910.132
3203174017.50.60.096
3303174722.210.181
3204204720.610.153
3304205225.41.10.217
3205255220.610.175
3305256225.41.10.362
3206306223.810.286
3306307230.21.10.553
32073572271.10.436
3307358034.91.50.766
3208408030.21.10.59
3308409036.51.51.01
3209458530.21.10.64
33094510039.71.51.34
3210509030.21.10.689
33105011044.421.81
32115510033.31.50.986
33115512049.222.32
32126011036.51.51.27
331260130542.13.05
32136512038.11.51.57
33136514058.72.13.96
32147012539.71.51.8
33147015063.52.14.74
32157513041.31.51.9
33157516068.32.15.65
32168014044.422.39
32178515049.223.06
32189016052.423.73
32199517055.62.14.86
322010018060.32.15.94

Introduction

Angular contact ball bearings have raceways in the inner and outer rings that are displaced

with respect to each other in the direction of the bearing axis. This means that they are

designed to accommodate combined loads, i. E. Simultaneously acting radial and axial loads.

The axial load carrying capacity of angular contact ball bearings increases with increasing

contact angle.

Ceramic ball especially silicon nitride ceramic ball have the following performance as low

density, high strength, low friction coeffecient, electrical and magnetism resistance, wear

resistance, well rigidity, lubrication and maintenance free when working, ceramic angular

contact ball bearing has the characteristics of high temperature resistance, cold resistance,

abrasion resistance, corrosion resistance and insulation, and can be used in extremely bad

environment and special conditions.it's the best choice for rollers and rings for bearing wich

are used in high speed, long accuracy and long life environments. So they are widely used in

aviation, aerospace, marine, petroleum, chemical, automotive, electronics, metallurgy, electric

power, textile, medical equipment and other fields.



Rings:

The inside and outside rings are made by chrome steel (GCr15)/stainless steel/Silicon Nitride

/ZrO2;

Rollers:

The balls are made of silicon nitride ceramic/ZrO2;

Retainers:

The retainers are made by PEEK or PTFE.

Company Information



Trade Shows

Packaging & Shipping

payment

A: 30% T/T in advance .70% against copy of B/L

B.30% T/T in advance .70% against L/C at sight

C.Western union

D.Paypal

E:50% in advance,the balance should be paid after seeing the picture of total goods.

F:Offical Bank Account

Our Services

Why us

1.High speed, High Precision, Low Noise, Long Service Life
2.Wide Array of Applications
3.Large Inventories
4.Small order accept
5.Competitive Prices and High Quality
6.Various Brands
7.Require little maintenance
8. OEM is supported
9. Our company insists on the "quality first, credit first" business ideas and our product specification is well-founded. We have a good reputation in the international market by our perfect service and sufficient supply.
