Quick Details

  • Structure: Angular Contact
  • Type: Ball
  • Brand Name: ZYSL
  • Bore Size: 15 mm
  • Outside Diameter: 35 mm
  • Model Number: 3202 ATN9
  • Precision Rating: P0 P6 P5 P4 P2
  • Seals Type: ZZ 2RS OPEN
  • Number of Row: Single Row
  • Place of Origin: China (Mainland)
  • Material: Chrome Steel
  • Application: Machinery
  • Certification: ISO9001:2008
  • Service: OEM Customized Services
  • Stock: Large
  • Lubricated: Oil.grease
  • Feature: Long Life .durable
  • Tolerance: ABEC5 ABEC7 ABEC3
  • Cage Material: Chrome Steel Cage

Packaging & Delivery

Packaging Details single box or according to customers requirments
Delivery Time Shipped in 3 days after payment

our main products:



Angular contact ball bearing introduction:
Angular contact ball bearings have raceways in the inner and outer rings that are displaced with respect to each other in the direction of the bearing axis, which means that they are designed to accommodate combined loads, i.e. simultaneously supporting radial and axial loads.The axial load carrying capacity of angular contact ball bearings increases with increasing contact angle. The contact angle α is defined as the angle between the line joining the points of contact of the ball and the raceways in the radial plane, along which the load is transmitted from one raceway to another, and a line perpendicular to the bearing axis.Retainers are made of brass ,synthetic resin of others subject to individual bearing features and application conditions.

Working principle:
It uses axially asymmetric races. An axial load passes in a straight line through the bearing, whereas a radial load takes an oblique path that tends to want to separate the races axially. So the angle of contact on the inner race is the same as that on the outer race. Angular contact bearings better support "combined loads" (loading in both the radial and axial directions) and the contact angle of the bearing should be matched to the relative proportions of each. The larger the contact angle (typically in the range 10 to 45 degrees), the higher the axial load supported, but the lower the radial load.

 Types

Angular contact ball bearings are produced in a wide variety of designs and sizes.Those commonly used and included in this catalogue are:

1.Single-row angular contact ball bearings

Axial load in single direction can be sustained. While supporting pure radial load, the bearings must be installed and used in pairs since the line of action of the rolling element load is not in the same plane as that of the radial one, resulting in inner separate force.



2.Double-row angular contact ball bearings

This is basically a back-to-back mounting of two single-row angular contact ball bearings, but their inner and outer rings are each integrated into one. Axial loads in both directions can be sustained, and the capacity to sustain moments is good. This type is used as fixed-end bearings. Their cages are pressed steel.



3.Four-point angular contact ball bearings

The inner ring is split radially into two pieces. Their design allows one bearing to sustain significant axial loads in either direction. The contact angle is 35°, so the axial load capacity is high. This type is suitable for carrying pure axial loads or combined loads where the axial loads are high. The cages are made of machined brass.



Typical applications

They are mainly used for steel industry,mining&construction,papermaking machinery, wind turbines,semiconductors,machine tools,gearboxes,electric motors,pumps&compressors,injection moldingmachines.



Advantages:

  • low friction
  • Minimum lubrication
  • Wear resistant
  • Running in not required
  • Requires Little attention
  • Dimensions relatively small
  • No scraping required to fit shaft
  • Easy replacement

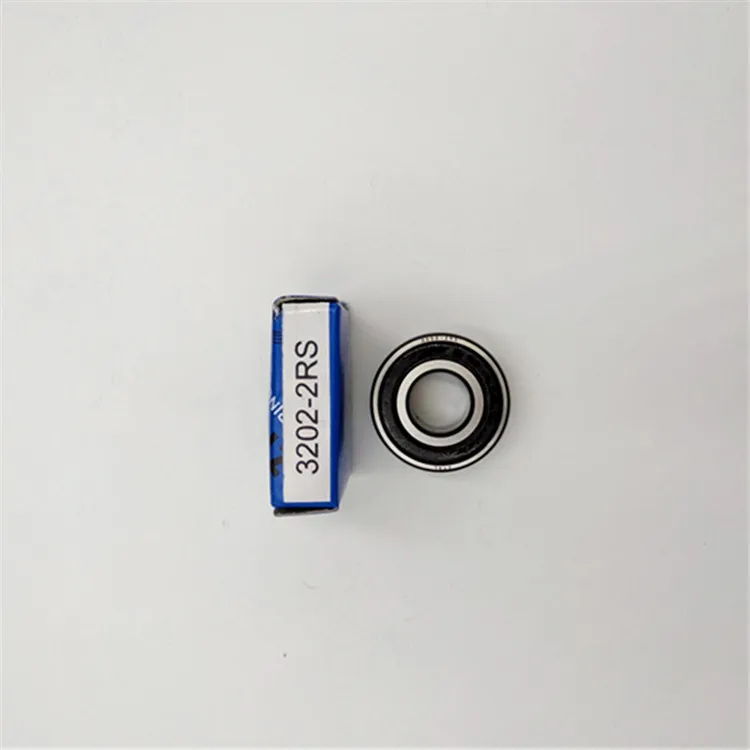

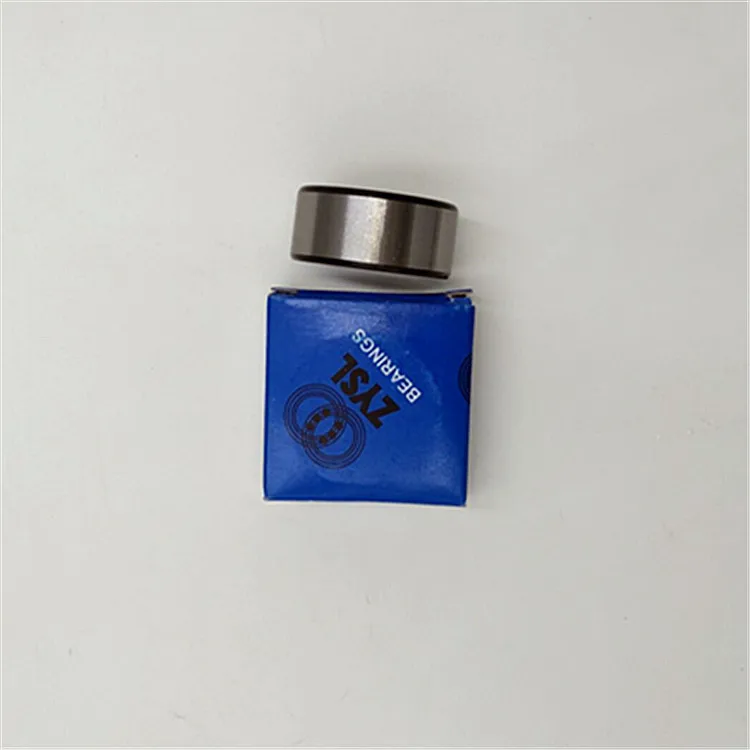

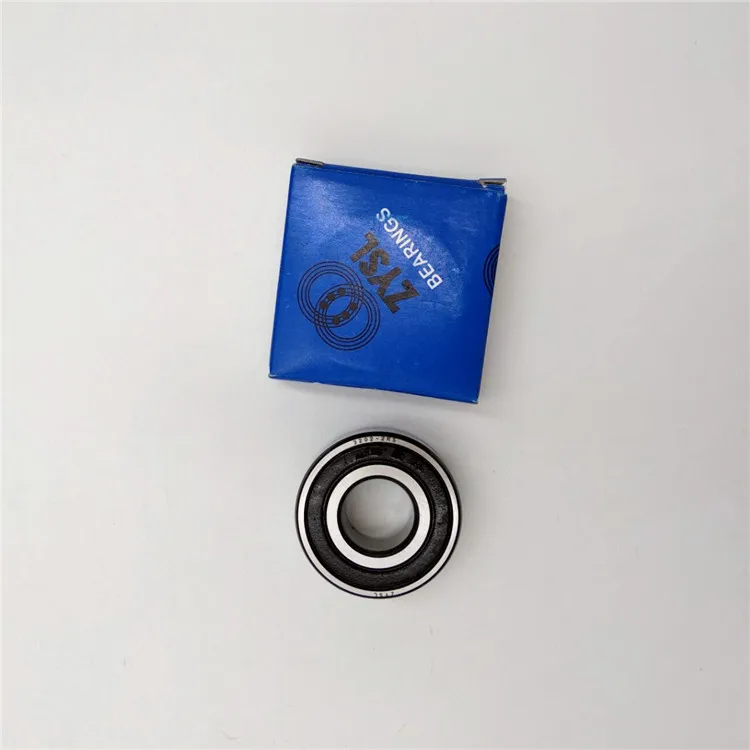

bearing pictures:



Company Information

Company Introdurction

Jinan Sheng Lei bearing Co., Ltd. is located in the "Spring City" Jinan. We Insist the integrity and pragmatic, win-win business philosophy, adhere to the people-oriented, advancing enterprise spirit and regard "quality first, customers utmost" as enterprise concept. Our company has established a professional sales network to help customers get products information at the first time. Our products are exported to many countries now, we have won good reputation and feedbacks from our customer. We offer high quality products with reasonable price and short delivery time.

Company Show



Factory:





Office:





Certificate: ISO 9001:2008





The production process:



Trade Shows



Participate in the exhibition:





Customer visition:



Packaging & Shipping

Package

A.tube package + outer carton + pallets
B.single box + outer carton + pallets
C.tube package + middle box + outer carton + pallets
D.According to your request.

payment

A: 30% T/T in advance .70% against copy of B/L

B.30% T/T in advance .70% against L/C at sight

C.Western union

D.Paypal

F:50% in advance,the balance should be paid after seeing the picture of total goods.

Our Services

Why us

1.High speed, High Precision, Low Noise, Long Service Life
2.Wide Array of Applications
3.Large Inventories
4.Small order accept
5.Competitive Prices and High Quality
6.Various Brands
7.Require little maintenance
8. OEM is supported



contact person

Skype:cindy.chen125

whatsapp:+8615098917851

I am looking forward to receiving your enquires soon .^ - ^
