1. Standard export package (from inside to outside): oiled paper, boxes, cartons, (and wooden pallets)
Shipped in 2 days after payment
High precision ABEC9 608 skate bearings 608 super reds ceramic ceramic reds bearing
ZYSL is a specialized manufacturer of Ceramic Bearing. Full Complement ceramic bearings,Ceramic Balls.
A: Hybrid Ceramic Bearing: Ceramic bearings offer a significant performance improvement from those made from traditional steel. Our ceramic bearings are manufactured from silicon nitride (Si3N4), an exceptionally hard non-metallic material rated for speeds to 2 million dN, offering a wide selection of benefits.
Hybrid Bearings have steel rings and ceramic balls. Si3N4 Ball is the most popular for the balls as it has only 40 percent of the density of bearing steel but is much harder giving greater wear resistance. Zirconia is heavier with 75 percent of the density of steel so is less suitable for hybrid bearings..
There are two types of hybrid ceramic bearings that we can produce:
2: Chrome Steel rings (or Stainless rings) with Full Si3N4 balls no cage
Those Bearings have been tested by the Japanese machine and passed with a very good quality
B: Full Ceramic Bearing :
Full Ceramic Bearings are made entirely of ceramic material and are superior to common steel bearings in many ways. Ceramic is the perfect material for any application seeking to achieve higher RPM’s, reduce overall weight or for extremely harsh environments where high temperatures and corrosive substances are present. Applications such as cryopumps, medical devices, semiconductors, machine tools, turbine flow meters, food processing equipment, robotics and optics. Ceramic materials commonly used for bearings are Silicon Nitride (Si3N4), Zirconia Oxide (ZrO2), or Silicon Carbide (SiC.)
C:Ceramic Balls: We are special in making Silicone Nitride Balls (Si3N4 Balls,Zicronia Balls (ZrO2 Balls),Sic Ceramic Balls , Aluminum Oxside Valve (AI203) ceramic balls. Compared with steel, ceramic materials are noted for their better or particular characters, such as wear-resistance, corrosion resistance, high temperature resistance, electrical insulation (except SiC), non-magnetic, high strength, high rigidity, and low specific gravity. These properties qualify them for replacing steel to make bearings serve in conditions of higher speed, harsh environment and less lube, and decrease wear, noise, vibration and maintenance time of bearings, and eventually increase performance, reliability and life of bearings.
1.High precision bearings,P4 ,P5 and P6.
2.Rings are made of refined Chrome steel.stainless steel 440C
3.Cage:Peek & PTFE cage .(can assure constant working under 250 centigrade)and peek cage also is the ideal cage for the high speed as it can provide the lubrication during bearing working, and it has the property of self-lubrications.However for normal applications, steel cage and Nylon cage is enough.
4. Balls: we use G3,G5 high precision Si3N4 ball for the high speed.
5. Radial clearance: Normal C0,or C3.
6.Not only for the high speed, but also Hybrid bearings has the
insulation functions. Hence for the small size of bore dia.40mm ,
also can be used for the insulation bearing purpose.
7.Full ball hybrid also can be produce as per our production picture.
All-ceramic bearings have good to excellent corrosion resistance, are non-magnetic and, apart from silicon carbide, are electrically insulating. All-ceramic bearings can be used in high to very high temperatures if supplied without a cage (full complement).
Electrical resistance: Si3N4 best, then ZrO2, then SIC which is conductive.High temp resistance:
SiC best (1100C), then Si3N4 (1000C), then ZrO2 (400C) Corrosion resistance:
SIC (excellent), then Si3N4 (very good) and ZrO2 (good)Load capacity:
SIC highest then Si3N4, then ZrO2 Fracture toughness:
ZrO2 best, then Si3N4, then SiC
All-ceramic bearings have lower load and speed ratings than steel or hybrid bearings. The speeds are lower due to the lower precision and roundness of the rings and the loads are lower because the material is more brittle. Under heavy loads and particularly heavy shock loads, there is a risk of cracking. For the same reason, great care should be taken with interference fits. Zirconia is the least brittle so it will handle shock loads and very small interference fits better than the other ceramic materials with silicon carbide being the most brittle. Shock loads should be avoided with all-ceramic bearings. Great care should be taken when using ceramic bearings (especially silicon nitride and silicon carbide) on steel shafts at high temperature due to the difference in expansion coefficient and the relative briteness of ceramics.

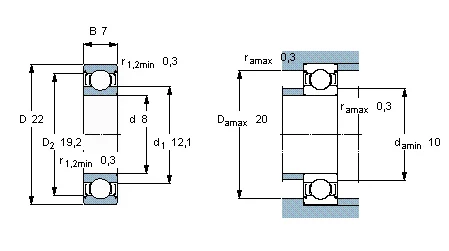

Design drawing of bearing 608
Main bearing product
Our main product:
Deep groove ball bearing: 6000series, 6100series, 6200series, 6300series, 6400 series, 6800 series,6900 series, etc.
Angular contact ball bearing: 7100series, 7200series, 7300series, 7400series, etc.
1.High speed, High Precision, Low Noise, Long Service Life
2.Wide Array of Applications
4.Small order accept
5.Competitive Prices and High Quality
7.Require little maintenance
8. OEM is supported
9. Our company insists on the "quality first, credit first" business ideas and our product specification is well-founded. We have a good reputation in the international market by our perfect service and sufficient supply.
Jinan ZYSL bearing Co., Ltd.are manufacturer and supplier from Jinan Shandong China , Which is on the line of bearing for more than 20 years experience .We integrate R&D,production and export of bearings.
So one of our biggest advantage compared others is that we can provide the best factory price based on the same good quality.Our employees are all received professional training.
And until now we has established a professional sales network to help customers get products information at the first time.Besides our company has strong technical strength, excellent processing equipment and complete testing equipment to ensure quality of bearings.The annual production capability is more than 960 million units.Quality is our culture and credibility is our primary principle in our business. So we constantly strive for research and innovation development, adhere to the concept of "survival of high quality", and provide excellent service for customers.
Packaging & Shipping
MOQ IS ONE PIECE
TERMS OF PAYMEMT: T/T
PACKING: CARTON OR WOODEN BOX OR ACCORING TO CUSTOMER REQUIREMENT
SHIPMENT: Logistics forwarder or Express service, according to quantity
Delivery time: 3-15 days according to quantity required
Quality: Export standard
Price term: FOB
1. How long is your delivery term?
Our standard product delivery term is normally 30 days. A new product development cycle is 60 days in normal. Under normal circumstances, there are standing stock for regular types. You can email us to learn more details.
2. Where is your port of shipment located? Our main port of shipment is Guangzhou port, and we may operate at other ports if required by the customer.
3. I couldn’t find a design to fit my application in your catalog. Can you help me design a bearing? Yes, technical expertise is available to assist you with engineering design for custom products. Available options include, but are not limited to, custom rings, retainers, balls, shields, lubricants, and packaging. We look forward to working with you to satisfy your rotary motion requirements.
I am looking forward to receiving your enquires soon .^ - ^
